2.1 Single-Step Detection Networks

These networks significantly speed up the detection process by directly predicting object classes and locations from the input image, bypassing the traditional step of extracting candidate regions. The YOLO series of networks exemplifies single-step detection. YOLO [13] divides the image into multiple grids, with each grid cell directly predicting bounding boxes and class probabilities. A key advantage of YOLO is its speed, enabling near-real-time object detection, making it particularly well-suited for video stream processing. Over the years, YOLO has seen continuous updates to its architecture, improving both accuracy and processing speed through deeper networks, optimized anchor boxes, and advanced loss functions. YOLO's later versions incorporate features like multi-scale detection, which allow the network to detect objects of various sizes more effectively, further enhancing its applicability in dynamic and complex environments.Another network, CenterNet [14], offers a simpler yet efficient detection approach by predicting the center points and sizes of objects, rather than traditional bounding box regression. This method significantly reduces network complexity and eliminates the need for region proposal and post-processing steps, thus improving detection speed without sacrificing accuracy. This direct approach to object localization has proven particularly beneficial in real-time applications where efficiency is critical.YOLACT [15], though primarily designed for instance segmentation, also adopts a single-step detection paradigm. By breaking down the segmentation task into prototype mask generation and instance-specific coefficient prediction, YOLACT achieves real-time instance segmentation. Its lightweight design and efficient mask prediction make it suitable for complex real-time scenarios, such as dynamic environments with overlapping objects. RefineDet [16], another single-step detection network, introduces a two-stage refinement module, where initial candidate boxes are first generated and then refined for more accurate detection. While this introduces slightly more computation than typical single-stage detectors, the refinement step ensures a higher detection accuracy, balancing speed and precision effectively.

In summary, single-step detection networks like YOLO [13], CenterNet [14], YOLACT [15], and RefineDet [16] have revolutionized the field of object detection by significantly improving speed and efficiency. These networks bypass traditional region proposal methods, making them suitable for real-time applications such as video processing and autonomous systems. YOLO's grid-based approach offers a balance between speed and accuracy, while CenterNet simplifies the detection process by focusing on center points, further reducing complexity. YOLACT expands on these capabilities by integrating instance segmentation, enabling it to perform well in real-time segmentation tasks. RefineDet introduces a refinement process that enhances accuracy without compromising much on speed.

However, despite their advancements, these models still face challenges, particularly in handling smaller objects or highly dense scenes where multiple overlapping objects can reduce detection accuracy. Furthermore, while speed is a major strength, maintaining high precision in complex environments with varying lighting, occlusion, or extreme object scales remains a challenge. As a result, future research should focus on addressing these limitations by developing more robust architectures that can balance both speed and high accuracy across diverse and challenging scenarios.

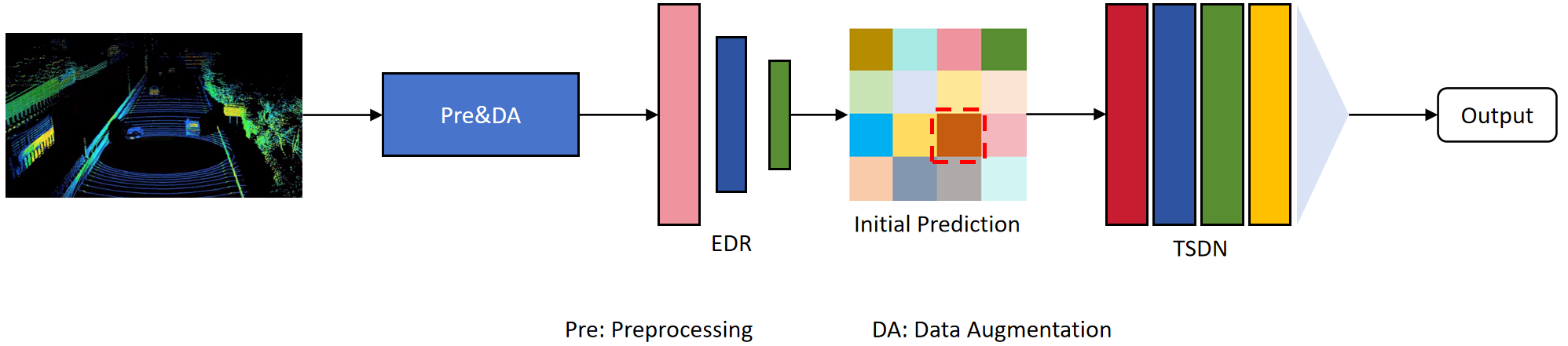

Figure 1 Overall structure of the proposed model.

2.2 Multi-Scale and Feature Fusion Networks

These networks leverage image features from different scales, utilizing feature fusion technology to enhance detection accuracy, particularly when dealing with objects of varying sizes. SSD [17] predicts the presence and location of objects across multiple feature maps simultaneously, effectively handling targets of different sizes. SSD employs independent convolutional layers at multiple predetermined scales to predict bounding boxes, thereby significantly improving the detection capability for smaller objects. EfficientDet [18] employs an innovative Bi-directional Feature Pyramid Network (BiFPN) that effectively merges features from different layers. This method optimizes feature utilization and reduces the consumption of computational resources. EfficientDet uses compound scaling technology to balance the network's width, depth, and input resolution, achieving an efficient and precise balance. To manage targets of various sizes and fully leverage multi-scale information in images, multi-scale and feature fusion networks adopt strategies that extract and merge features from different levels. These networks enhance the model's expressive power and adaptability by integrating features of different resolutions. The Feature Pyramid Network (FPN) [19] is a classic architecture for multi-scale feature fusion, performing excellently in natural image object detection tasks. FPN constructs a top-down architecture where semantic information from higher layers gradually percolates to lower layers, enriching each scale with abundant semantic and positional information. This approach is particularly suited for detecting objects that vary significantly in size. PANet [20] builds on the foundation of FPN by adding a bottom-up information pathway to further enhance the semantic capability of lower-level features. By enhancing the flow of features, PANet provides a more comprehensive feature fusion, thereby improving the model's performance in detecting small objects.

2.3 Networks Optimized for Mobile Devices

These networks are specifically designed to operate in resource-constrained environments by streamlining network architecture and reducing computational demands to achieve rapid detection. MobileNets [21] utilize depthwise separable convolutions, which significantly reduce the model's size and computational requirements. This makes MobileNets particularly suitable for running on mobile and edge devices while maintaining reasonable detection accuracy. SqueezeDet [22] is a lightweight network designed for low-power devices that combines the rapid detection capabilities of convolutional networks with the need of a compressed network structure. It drastically reduces the model's parameter count and computational needs while maintaining high performance in detection tasks. PeleeNet [23] is another lightweight network designed for mobile devices, employing a densely connected strategy similar to DenseNet but with significant optimizations in computational load and parameter count. The aim of PeleeNet is to provide sufficient detection accuracy with sufficiently low latency, making it suitable for operation on lower-performance devices. ThunderNet [24] continues to advance object detection performance on edge devices through its SNet design and Context Enhancement Module (CEM). SNet serves as the backbone network, focusing on enhancing computational efficiency, while CEM leverages contextual information to improve feature expressiveness, thereby enhancing the accuracy of detecting small objects. These advancements collectively contribute to the viability of deploying advanced object detection technologies in environments where computational resources are limited, such as in embedded systems or mobile applications. This capability is crucial for applications that require real-time processing without access to powerful computing infrastructure, such as autonomous vehicles, drones, or mobile applications that require immediate response and interaction with the environment. As modern devices increasingly operate in dynamic and resource-limited conditions, the importance of these lightweight networks continues to grow. The continuous push for more efficient models ensures that such systems remain responsive and capable of handling diverse tasks with minimal latency. This is particularly valuable in autonomous systems where timely decisions are crucial for safety, such as avoiding collisions in self-driving cars or enabling quick adjustments in drone flight paths based on real-time sensor input. Moreover, with the growing integration of AI in everyday devices, these lightweight solutions allow for more widespread deployment of advanced object detection technologies, making them accessible in a broader range of scenarios, from edge devices to industrial IoT applications.

3.1 Efficient Data Representation

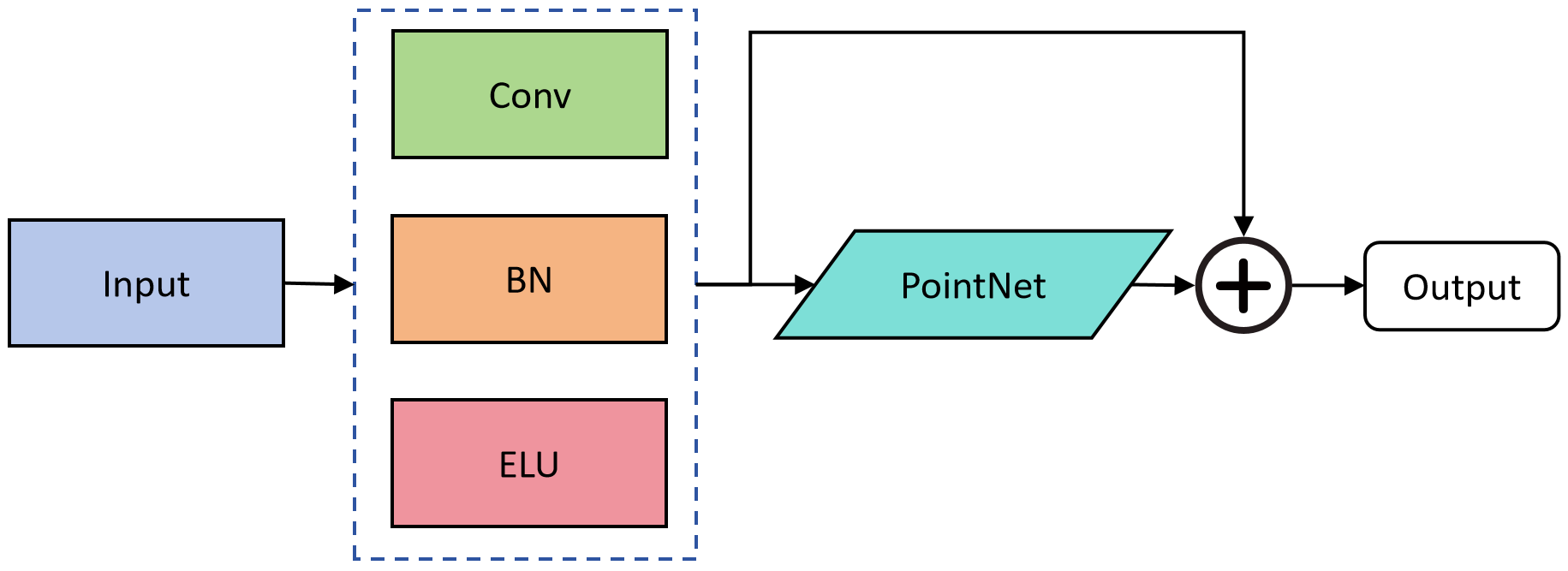

Figure 2 Structure of the EDR.

The proposed efficient data representation method comprises two main steps: efficient voxelization and detail-preserving point feature extraction. The purpose of voxelization is to reduce the scale and dimensions of the data, making it more suitable for rapid processing. Point feature extraction, on the other hand, aims to capture the fine structures within each voxel, which is crucial for maintaining the accuracy of object detection. The network model architecture is illustrated in Figure 2.

Voxelization Process: Voxelization involves dividing the continuous point cloud space into a regular grid and aggregating point cloud information within each grid cell. The aggregation can be achieved through various statistical measures such as the mean, maximum values, or a combination of features. The voxelization process is defined as follows:

where $\omega \left(p_i\right)$ is the weights learned during training. In the voxelization process, C represents the set of points within the voxel, and $\varphi \left(p_i\right)$ is the feature extraction function applied to point $p_i$. This function can involve simple attributes such as coordinates, intensity, and color, or more complex properties like local curvature or normal vectors.

Point Feature Extraction: To further enhance the expressive power of voxelized data, a lightweight PointNet network is employed within each voxel to extract more comprehensive local features. This approach ensures that even if some detail is lost during the voxelization process, these details can still be preserved through the learned features.

where $F_j^{\prime }$ represents the advanced features extracted from voxel (x,y,z). These features include not only geometric information but also deeper contextual information learned by the PointNet model. This combination provides a rich representation that enhances the model's ability to accurately recognize and classify objects within the 3D space.

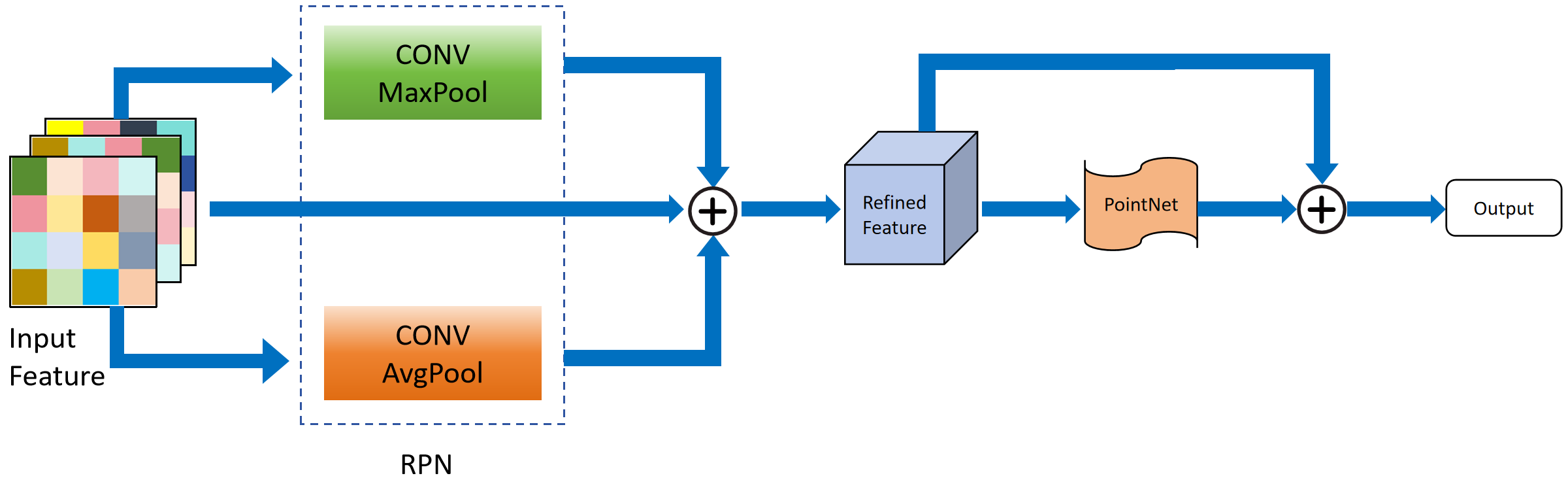

Figure 3 Structure of the TSDN.

3.2 Two-Stage Detection Network

The two-stage detection network is designed to enhance detection speed while ensuring accuracy, with the RPN structure and the RefinerNet structure as its core module. The model structure is illustrated in Figure 3.

First Stage: Rapid Region Proposal Network (RPN). The goal of this stage is to rapidly generate high-quality candidate regions from the hybrid data representation. The RPN utilizes a series of optimized convolutional layers to process voxelized point cloud data, which are specifically designed to capture spatial structures and reduce computational complexity. The proposal of candidate regions is based on a sliding window approach, where the point cloud data within the window is analyzed by a small neural network to assess the presence of potential target objects. The output of the RPN is a set of bounding boxes, each with a score indicating the likelihood of containing an object. This process can be represented by the following formula:

where $V$ represents the voxelized data that has undergone preliminary processing. Regions denote the collection of candidate areas. These elements are integral to the RPN's functionality, enabling it to efficiently filter and prioritize areas for further analysis in the object detection process.

Second Stage: Refinement Detection Network (RefinerNet). Once candidate regions are successfully identified, the second stage aims to perform a deeper analysis of these areas to refine the localization and classification of targets. This stage leverages local features extracted from PointNet along with preliminary candidate region information provided by the RPN. RefinerNet applies a more complex neural network structure to each candidate region, which includes deep convolutional networks and attention mechanisms to ensure accurate identification of target details from the refined features.

The refinement stage focuses on enhancing the precision of object detection, particularly in scenarios involving object edges and partial occlusions. This process can be described as follows:

where $F^{\prime }$ represents the collection of features extracted from the first stage, which includes spatial and depth features used to precisely describe the contents of the candidate regions. These features are crucial for effectively refining the detection and classification of objects within the specified areas, ensuring higher accuracy and a more detailed understanding of the scene. Finally, a lightweight PointNet is employed to obtain the detection results.

Through this two-stage detection network, the advantages of rapid detection and precise detection are effectively combined. In the first stage, by swiftly filtering through a large number of spatial areas to identify potential candidate regions, the computational resources required for subsequent processing are significantly reduced. In the second stage, resources are concentrated on in-depth analysis to ensure the accuracy and reliability of detection. This design enables the network to maintain real-time processing capabilities while also meeting the demands for high-precision detection. This approach not only enhances performance but also optimizes operational efficiency, making it particularly suited for applications where both speed and accuracy are critical.

3.3 Real-time Processing Capability

To ensure that the 3D point cloud object detection framework operates efficiently in real-time applications, several measures have been implemented in the design and optimization of its real-time processing capabilities. These measures include optimizing the network architecture and applying computational acceleration techniques.

Network Architecture Optimization. In designing the network architecture, the focus was specifically placed on reducing computational load and memory usage while maintaining high detection performance. The strategies adopted include:

Computational Acceleration Techniques. In order to further enhance processing speed, the latest computational acceleration techniques have been employed:

4.1 Experiment Setup

Training Details. Under default conditions, the model was trained using four NVIDIA A30 GPUs, with each GPU handling 2 point clouds, resulting in a total of 8 point clouds processed concurrently. This setup ensures efficient training by distributing the computational load across multiple high-performance GPUs. The Adam optimizer [27] was utilized with a learning rate of 0.001 to optimize the network parameters. This choice of optimizer and learning rate helps in achieving a good balance between fast convergence and training stability. Additionally, Batch Normalization [28] was applied following each parameter layer to help stabilize the learning process by normalizing the inputs of each layer. This method is particularly effective in accelerating the training phase and improving performance by reducing internal covariate shifts. A weight decay of 0.0001 was implemented in both networks to regularize the model and prevent overfitting. Weight decay works by adding a penalty to the loss function based on the magnitude of the weights, which encourages the model to maintain smaller weights and thus simpler models. The detailed parameters and configurations of the model training are comprehensively documented in Tables 1 and 2, encompassing critical architectural specifications including layer configurations, activation functions, and optimization hyperparameters. This systematic documentation ensures both methodological reproducibility and provides fundamental insights into the model's structural design and training dynamics.

Data Augmentation: Data augmentation is a critical technique, especially when the amount of available data is limited, to prevent overfitting during training. For each frame in the dataset, multiple data augmentation methods are employed to diversify the training examples: Random Flipping: Left-right random flipping is applied to the frames, which mirrors the point cloud data across the vertical axis. This process helps the model learn to recognize objects regardless of their orientation.

Random Scaling: Each frame is randomly scaled by a factor uniformly sampled from the range 0.95 to 1.05. This simulates the effect of objects appearing closer or further away from the sensor and encourages scale invariance in the model.

Random Rotation: Random rotation is performed on the entire scene for point clouds around the origin, with the degree sampled uniformly from -30° to 30°. This introduces rotational variance into the dataset, enhancing the model's ability to detect objects at different angles. Additionally, each ground-truth bounding box and its corresponding internal points are randomly perturbed by applying random transformations.

Random Shift: The shift for the bounding box is sampled from a predefined range for both the X and Y axes, and a different range for the Z axis, to account for the typical variations in the environment.

Random Rotation Around the Z-axis: The rotation is uniformly sampled from the range -10$\pi$ to 10$\pi$, which equates to a full 360-degree rotation potential. This rotation augments the dataset with a wide variety of angular perspectives, challenging the model to maintain accuracy despite changes in orientation.

These data augmentation techniques collectively form a robust strategy to enhance the generalization capability of the 3D object detection framework, preparing it for effective performance in real-world scenarios.

Figure 4 Visualization of results.

4.2 Dataset and Evaluation Metrics

Dataset: Two classic datasets were selected to validate the effectiveness of the model under various scenarios: the KITTI and NEXET datasets.

The KITTI dataset contains 7,481 training images and 7,518 testing images for object detection, specifically for 2D/3D object detection tasks. For the evaluation of the test subset and comparison with other methods, results are submitted to the evaluation server. Following the paradigm set in [6, 25], the dataset is divided into a training set (containing 3,712 images and point clouds) with around 14,000 car annotations and a validation set (containing 3,769 images and point clouds). Ablation studies are conducted on this split. For evaluation on the test set, the model is trained on the entire training set consisting of 7,000 point clouds.

The NEXET dataset is a large-scale video dataset extensively used in the field of autonomous driving. It covers over 77 countries, more than 1,400 cities, three lighting conditions (day, night, twilight), four seasons, multiple road conditions (urban, rural, highway, residential, and even desert roads), and various weather conditions (clear, foggy, rainy, snowy). The dataset provides high-fidelity video clips with rich annotation information, making it an ideal choice for assessing the proposed method.

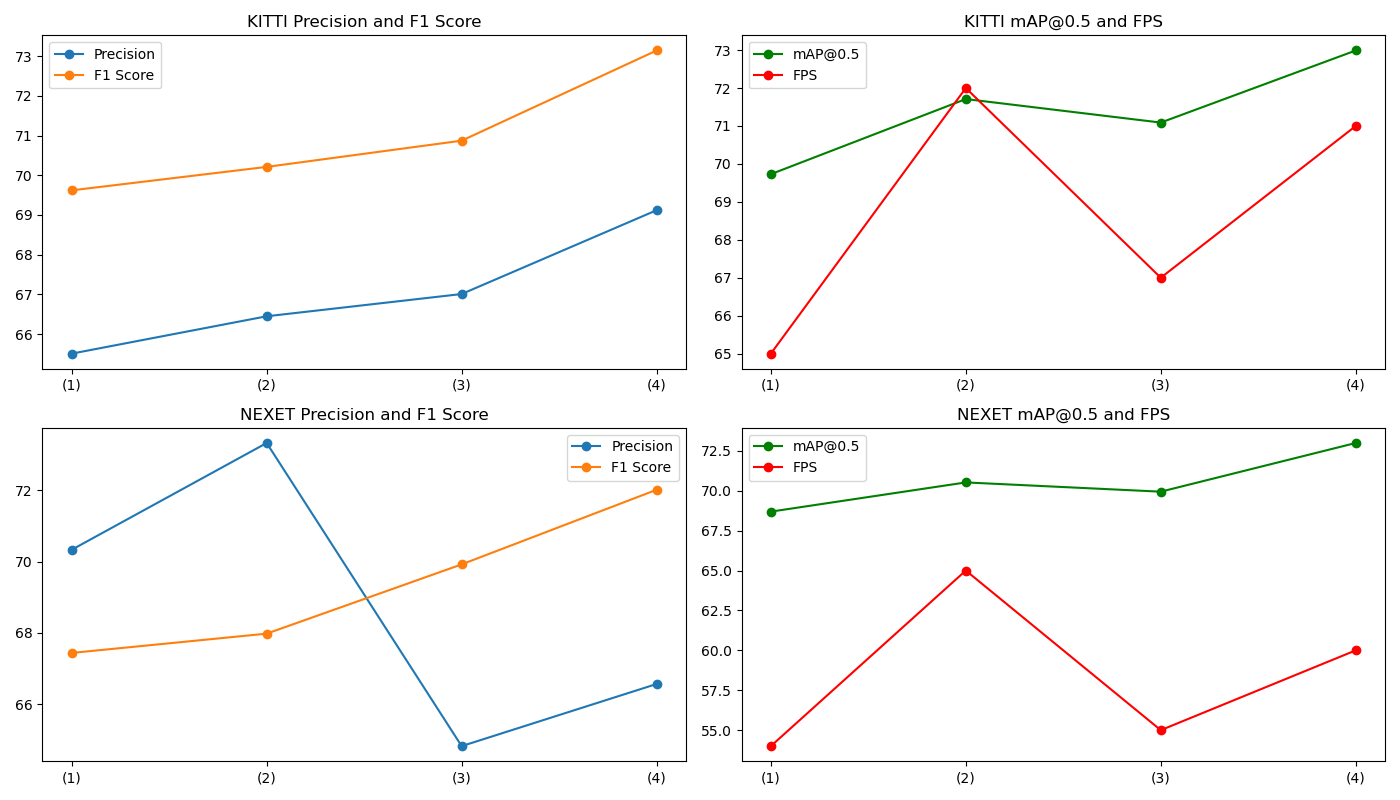

Figure 5 Visualization of results.Visualization of ablation experiment results. Among them (1) means not to add any module; (2) means to add only the EDR module; (3) means to add only the TSDN module; (4) means to add two modules.

In the above text, references such as [9, 10] presumably relate to prior research or specific methodologies that are documented within the broader context of this work. The dataset partitioning and use of full training sets for final test evaluations are standard practices to maximize the learned model's performance and generalizability. NEXET's diverse conditions offer a rigorous testing ground to showcase the robustness of the proposed object detection method across a wide array of real-world driving scenarios.

4.3 Evaluation Metrics

In the experiments, the following evaluation methods are adopted to comprehensively assess the model's performance:

Precision: Precision is the ratio of correctly predicted positive observations to the total predicted positives. It focuses on the quality of the model's outputs. The formula for calculating precision is:

where $TruePositives$ refer to the number of positive samples that were correctly predicted, while False Positives refer to the number of samples that were incorrectly predicted as positive. Precision is particularly useful when the costs of false positives are high. In the context of object detection, a high precision score indicates that when the model predicts an object is present, it is likely to be correct.

Recall: Recall is the proportion of actual positive samples that are correctly identified as such by the model, focusing on the completeness of the model's output. The formula for calculating recall is:

where $FalseNegatives$ is the number of positive samples that the model incorrectly identified as negative. Recall is an important metric when it is crucial to capture as many positives as possible.

F1 Score: The F1 Score is the harmonic mean of precision and recall, used to measure the balance between precision and recall. Its calculation formula is:

This score conveys the balance between precision and recall in a single number, with the best value at 1 (perfect precision and recall) and the worst at 0. It is particularly useful when you need to compare two or more models or when the class distribution is imbalanced.

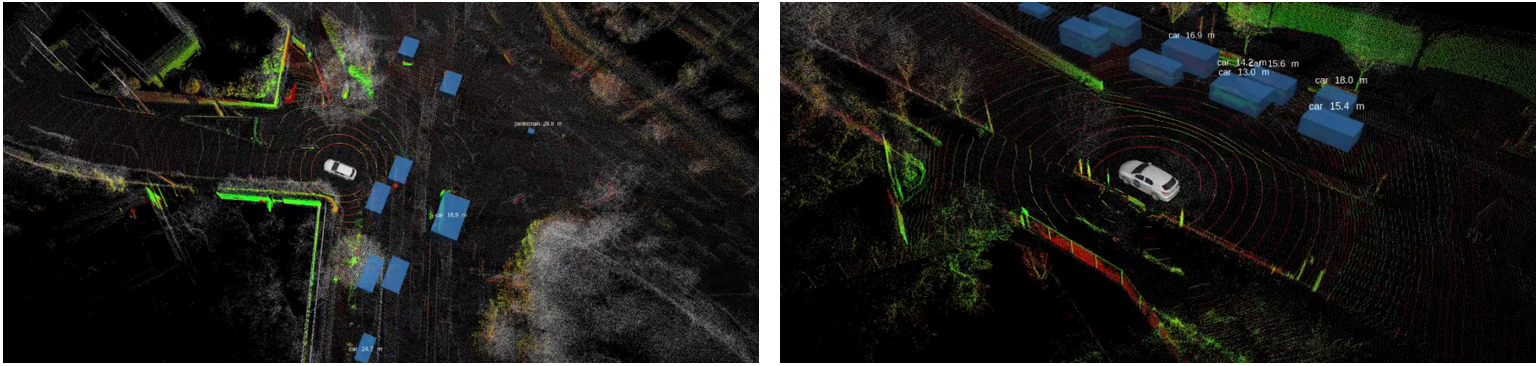

Figure 6 Visualization of object detection results.

Mean Average Precision(mAP): Mean Average Precision is the mean of the Average Precision (AP) scores calculated across multiple classes. It is a crucial metric for evaluating the overall performance of a model in multi-class detection tasks. The calculation is as follows:

where N is the number of classes, and $A{P}_i$ is the Average Precision for the $i^{th}$ class. Each $A{P}_i$ is calculated by integrating the area under the precision-recall curve for that class across different thresholds. The mAP score provides a single performance measure that incorporates both precision and recall, and it is especially important in scenarios where each class has equal importance.

mAP@[IoU]: mAP@[IoU] is the Mean Average Precision calculated at different IoU thresholds. Intersection over Union (IoU) is a metric used to evaluate the overlap between predicted and true bounding boxes. The calculation formula for IoU is as follows:

where $mAP@{\left[IoU\right]}_i$ is used to calculate the Average Precision (AP) for class i at a specific IoU threshold. In object detection tasks, it is common to set an IoU threshold (e.g., 0.5), and a prediction is considered correct only if the Intersection over Union (IoU) between the predicted bounding box and the true bounding box exceeds this threshold. mAP@[IoU] is calculated under this setting, and it is frequently used to evaluate the performance of a model under stricter matching criteria. This metric effectively measures how well the model is able to not just detect the objects but also accurately localize them by closely matching the predicted bounding boxes with the ground truth. The IoU threshold ensures that only predictions that meet a minimum standard of accuracy are considered, which helps to emphasize the quality of the detections. This is particularly important in applications where precision in object localization is critical, such as in autonomous driving, where misjudging the location of an object could lead to incorrect decision-making.

4.4 Experimental Results and Analysis

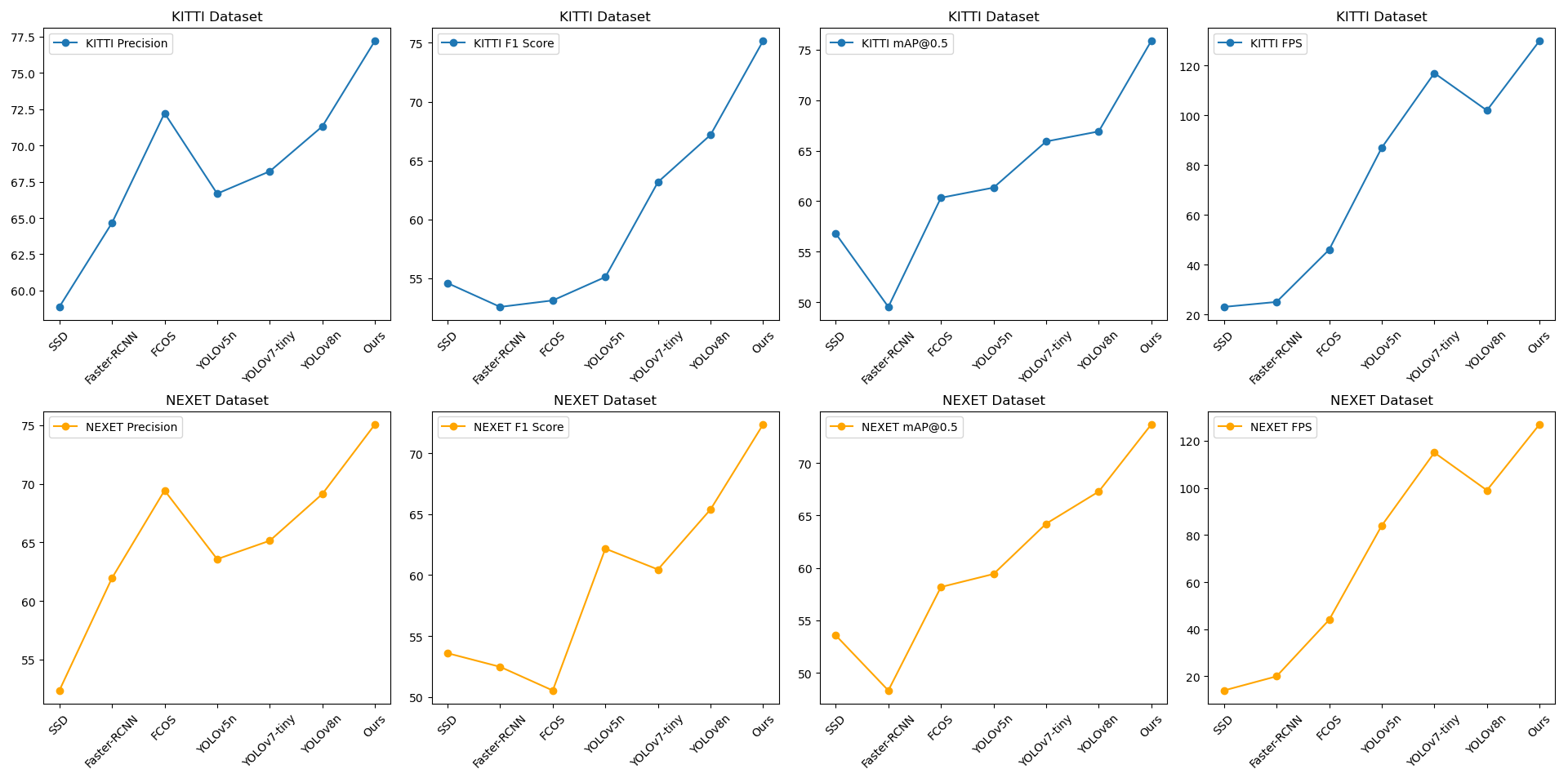

Table 3 and Figure 4 present the comparative performance analysis of state-of-the-art object detection methods across two benchmark datasets, reporting key evaluation metrics including Precision, F1 Score, [email protected], and inference speed (FPS). These quantitative measurements enable a rigorous and comprehensive assessment of detection accuracy and computational efficiency. On the KITTI dataset, the proposed method achieved the best results, reaching scores of 77.22% in Precision, 75.17% in F1 Score, 75.87% in [email protected], and 130 FPS. These results not only demonstrate its exceptional performance but also highlight its significant advantage in processing speed. For the NEXET dataset, the proposed method also displayed outstanding performance, specifically achieving 75.07% in Precision, 72.37% in F1 Score, 73.67% in [email protected], and 127 FPS. These results further substantiate the consistency of the proposed method's efficiency and accuracy across different scenarios. The quantification and visualization results are shown in Figures 5 and 6, demonstrating that the proposed method yields favorable outcomes in real-world scenarios. In summary, the adoption of this method has led to significant breakthroughs in both speed and accuracy, while also validating the model's feasibility in practical production environments.

4.5 Ablation Study

As shown in Table 4, the results of the ablation studies compare the specific impacts of different module combinations on model performance. Through detailed analysis, the experimental results reveal their individual and combined influences on Precision (Pre), F1 Score, [email protected], and frames per second (FPS). The baseline experiment did not utilize any of the new modules, while subsequent experiments progressively introduced modules to explore the stepwise improvement in model performance. Ultimately, when all modules were integrated, the experimental results achieved the best performance. This series of ablation studies not only verifies the importance of each module in enhancing model performance but also provides strong evidence for designing efficient object detection models, emphasizing the effectiveness of the proposed model in the field of autonomous driving.
